| Category | Item | Specifications |
| Rating | VDE, ENEC | 0.1A/1A/3A 250VAC/48VDC |
| Operating Frequency | Electrical | 15 times/min |
| Mechanical | 60 times/min | |
| Contact Resistance | Terminal Type | 50mΩ Max |
| Wire Type | 100mΩ Max | |
| Insulation Resistance | At 500VDC | 100MΩ Min |
| Dielectric Strength | Between Terminals | 0.5mA 500V 50-60Hz 1min |
| Terminals to Housing | 0.5mA 1500V 50-60Hz 1min | |
| Service Life | Electrical | ≥100,000 cycles |
| Mechanical | Over 500,000 cycles |

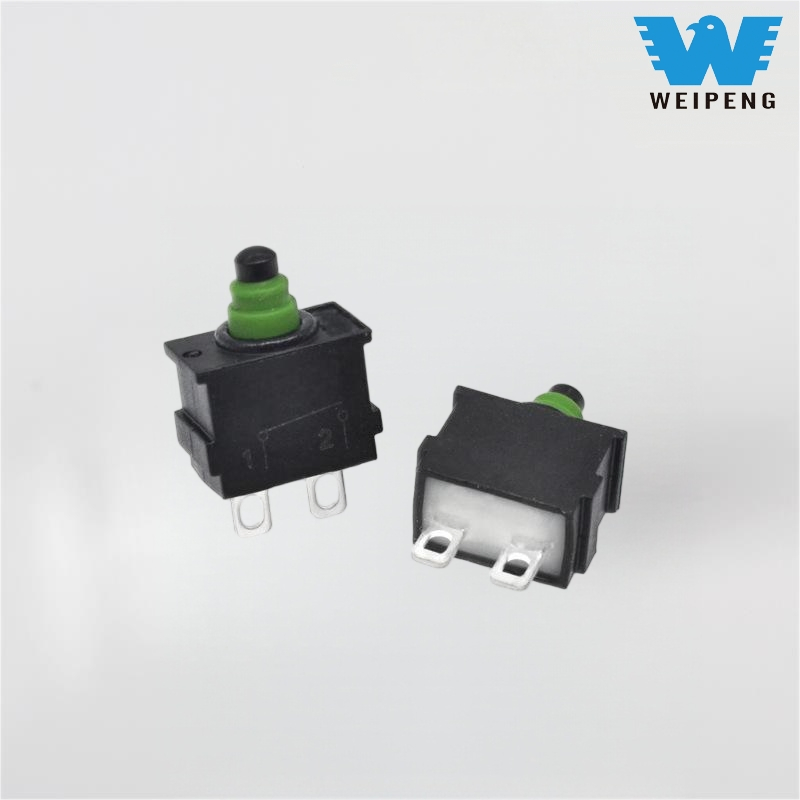

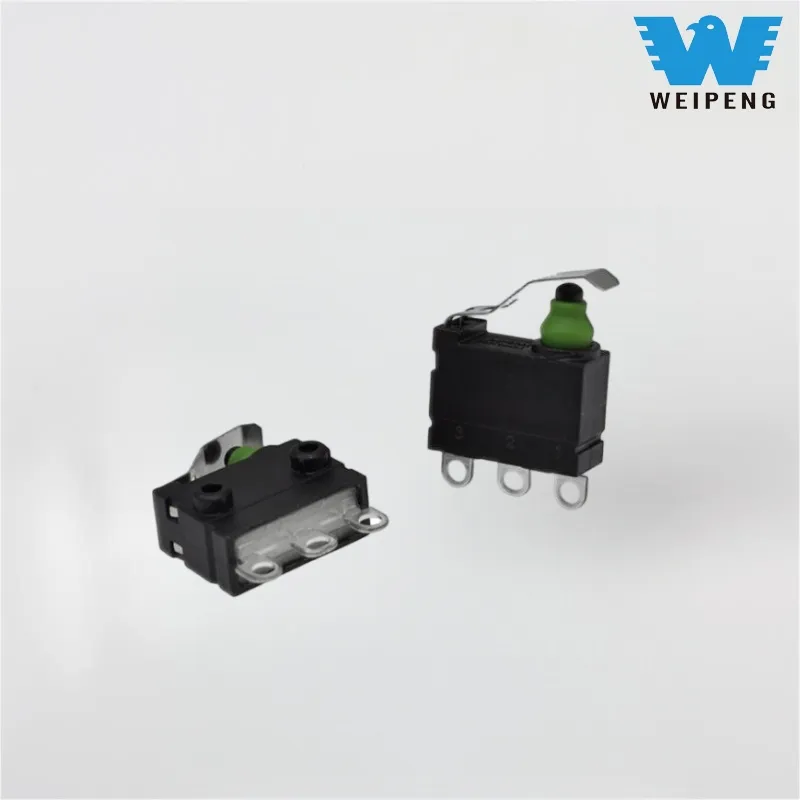

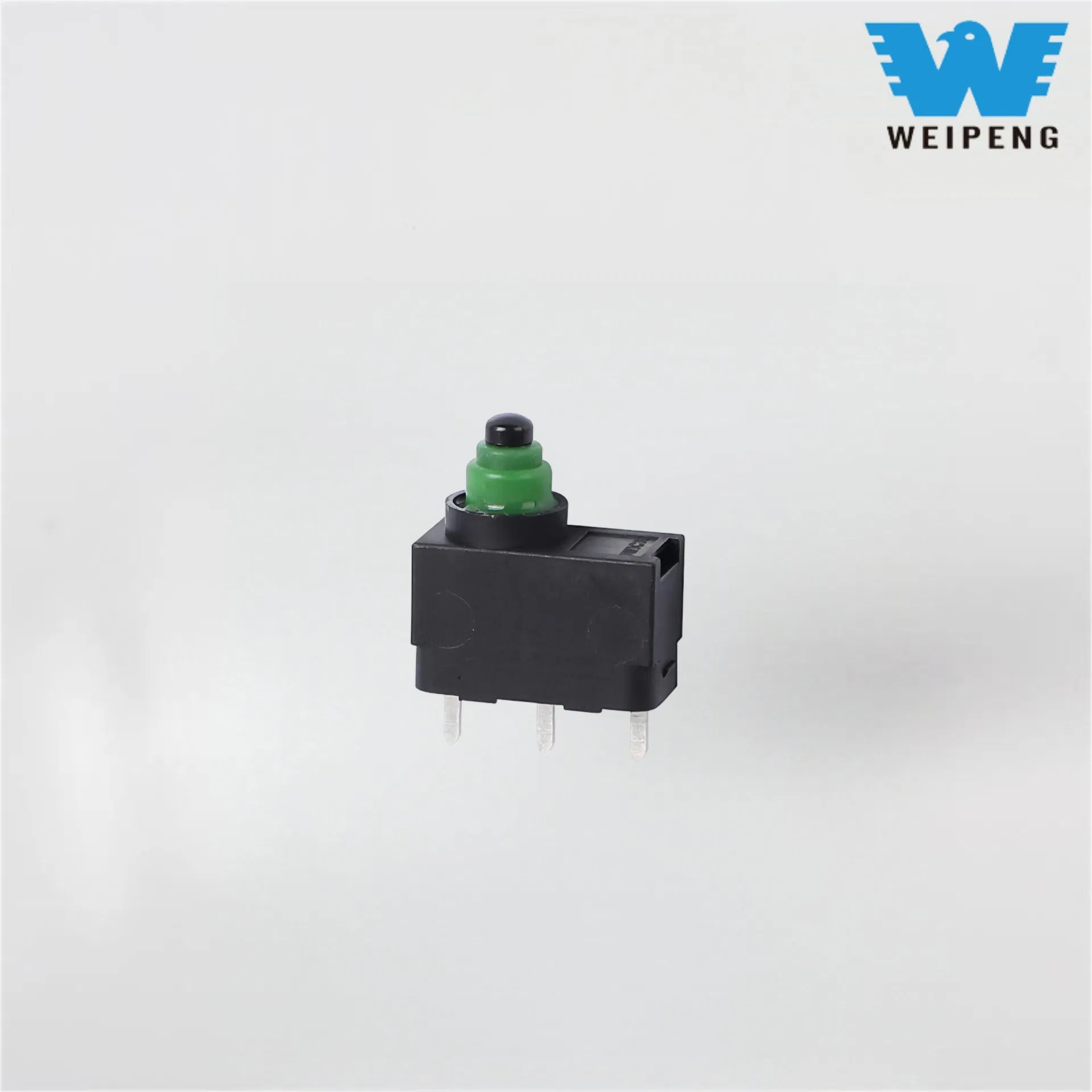

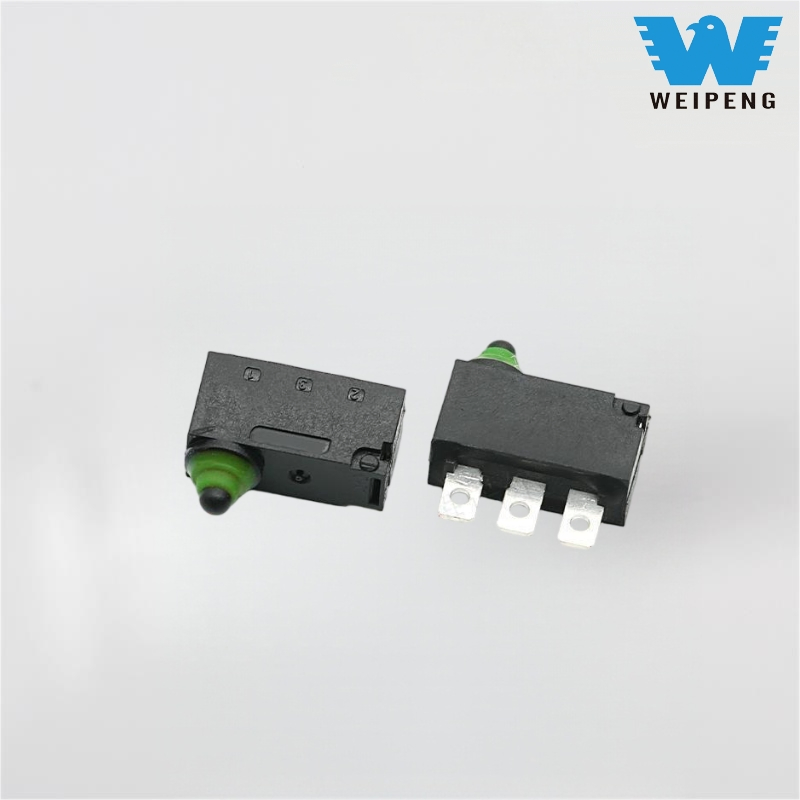

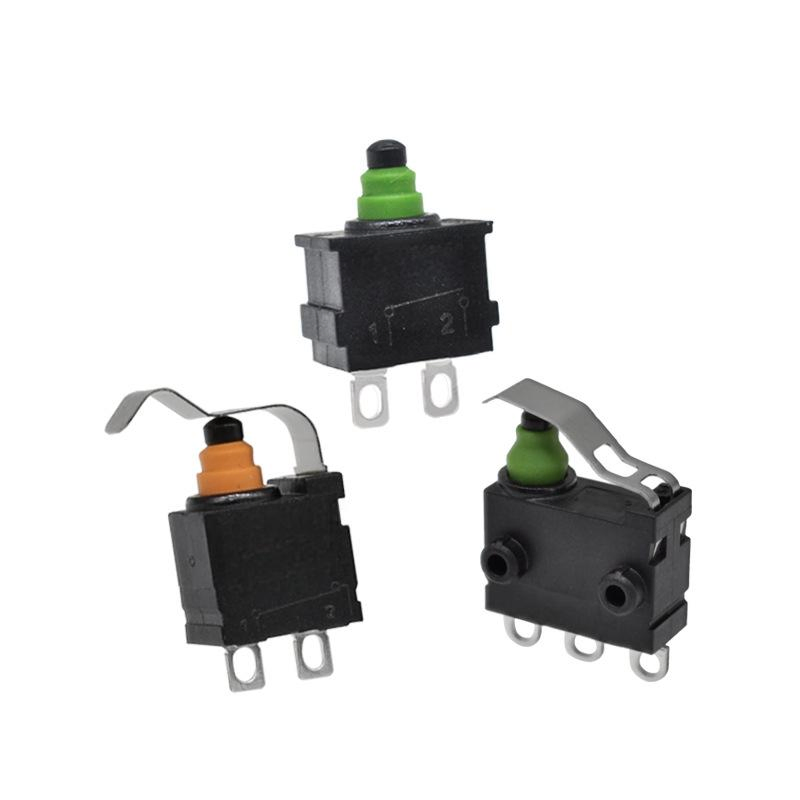

Description: This waterproof micro switch features a variety of actuators (pin plunger, lever, roller lever). Protection levels reach IP67. Electrical ratings range up to 15 Amps with operating forces from 50gf to 400gf. Mounting options include PCB through-hole, quick connect, and snap-in mounting.
