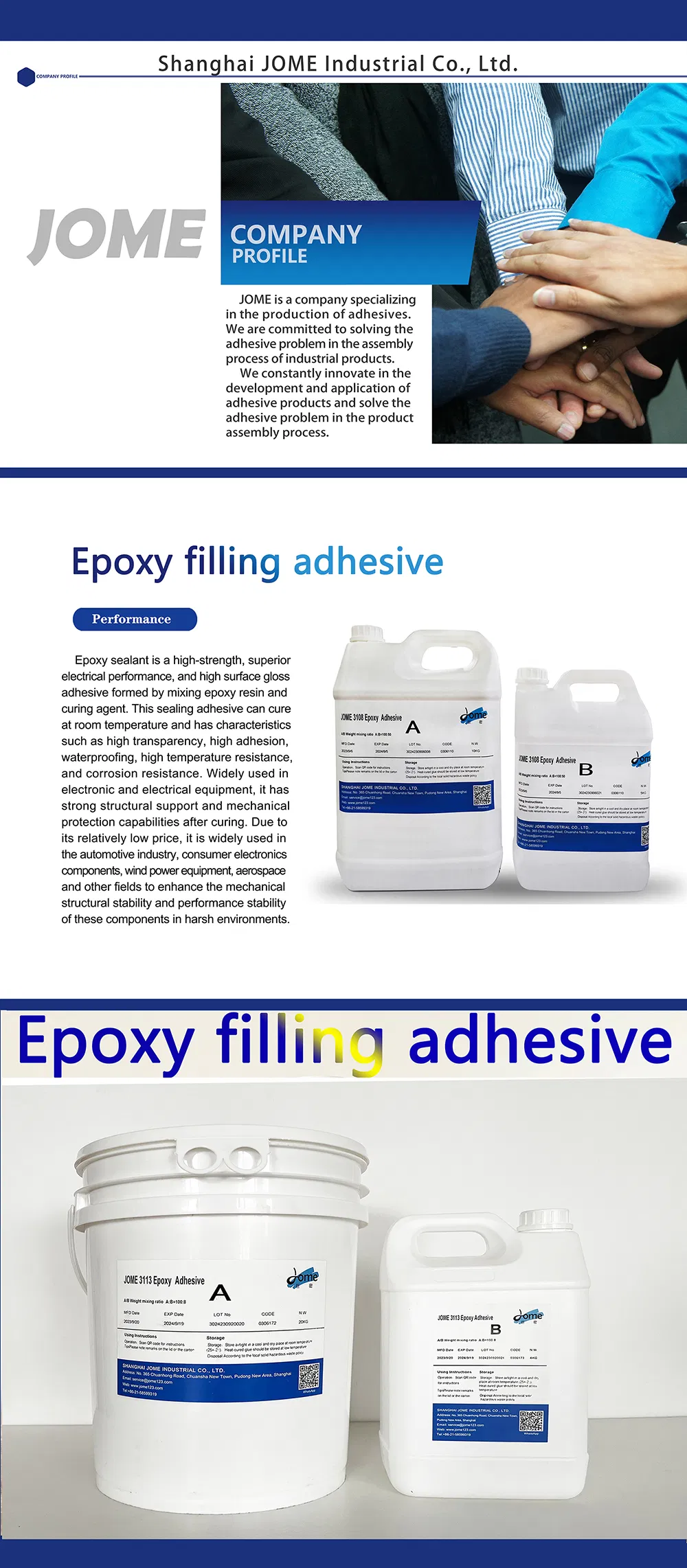

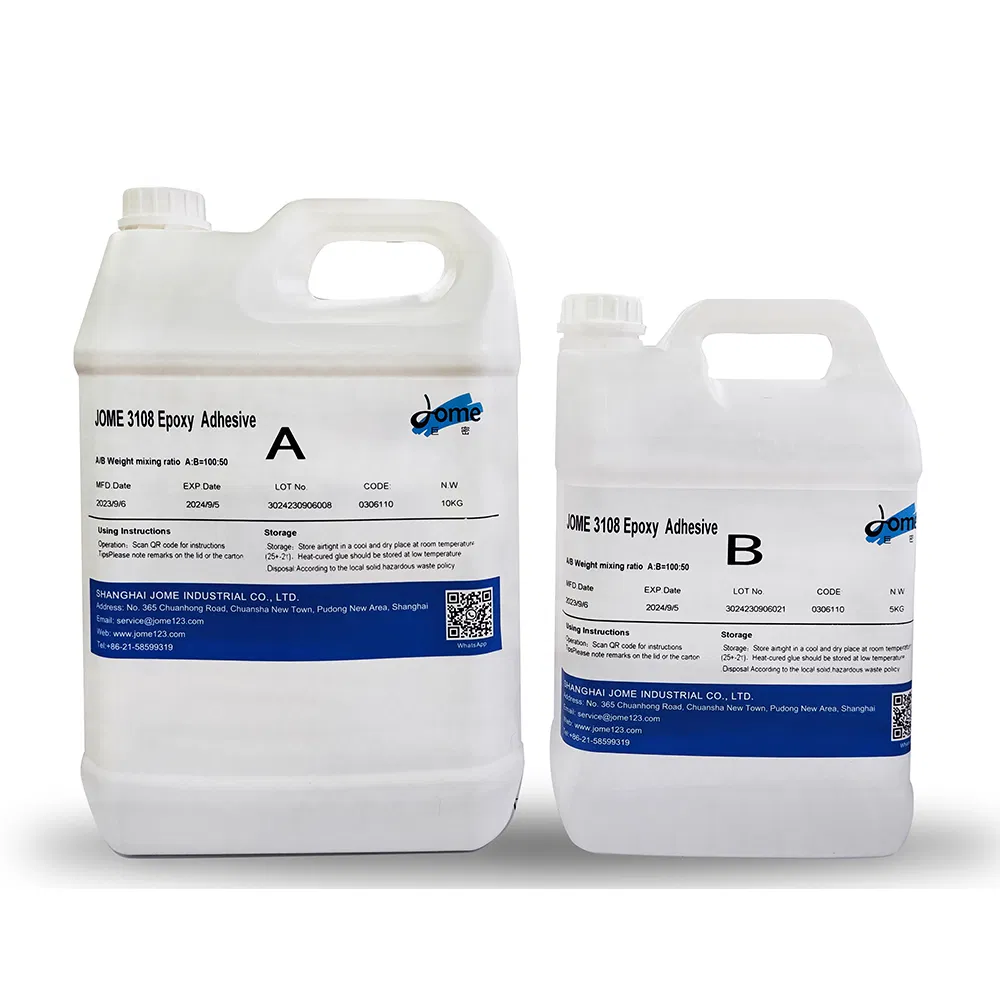

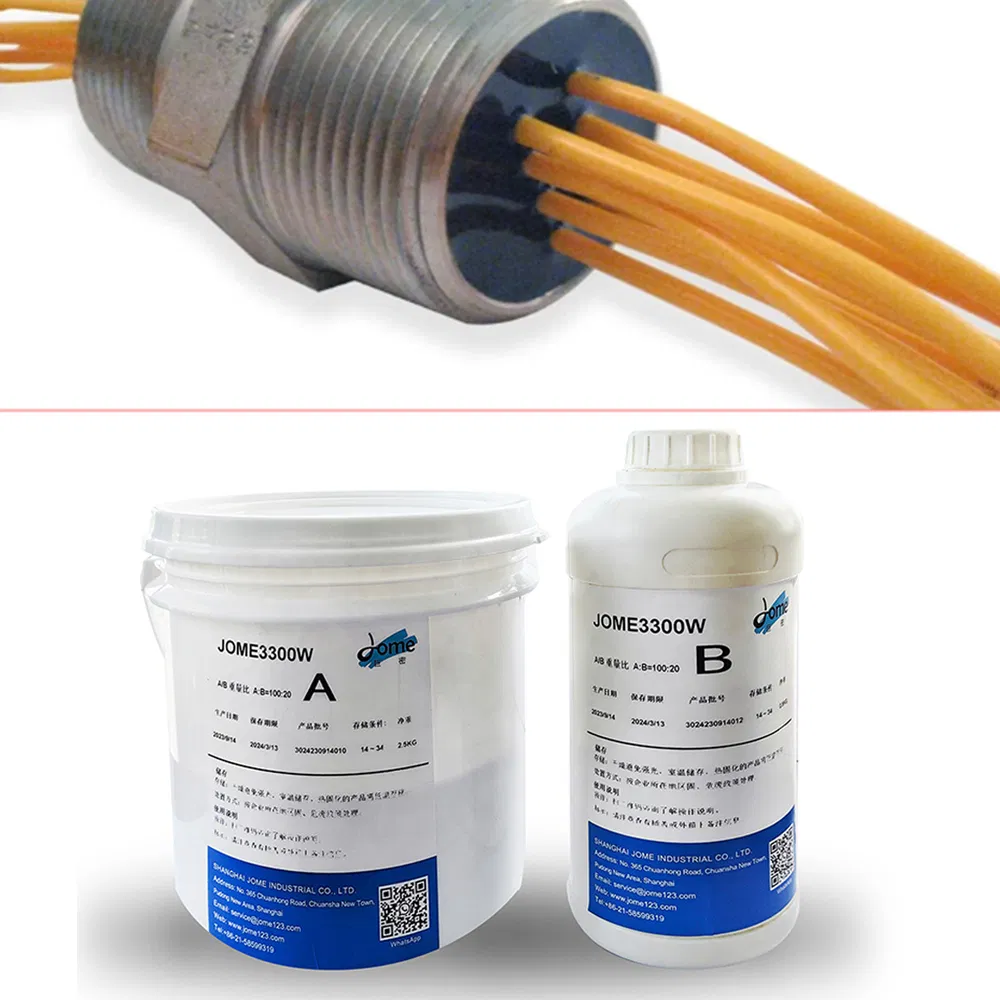

Epoxy sealant is a high-strength, superior electrical performance, and high surface gloss adhesive formed by mixing epoxy resin and curing agent. This sealing adhesive can cure at room temperature and has characteristics such as high transparency, high adhesion, waterproofing, high temperature resistance, and corrosion resistance.

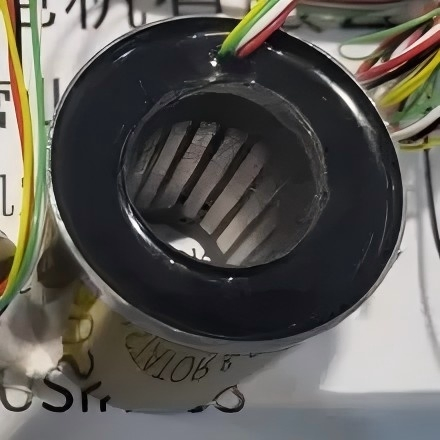

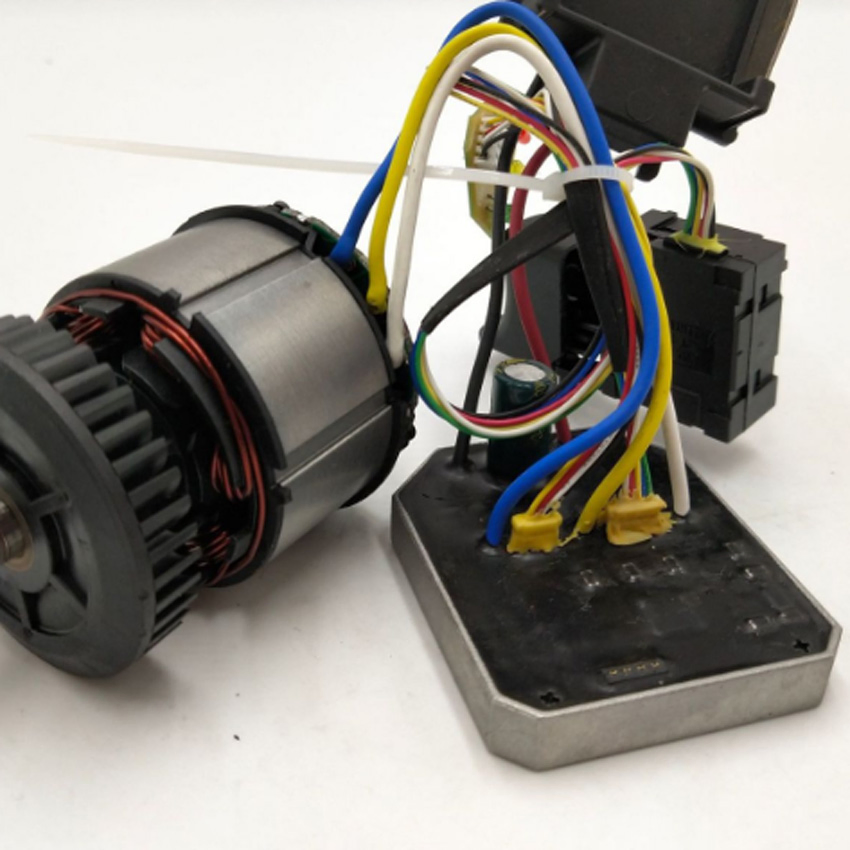

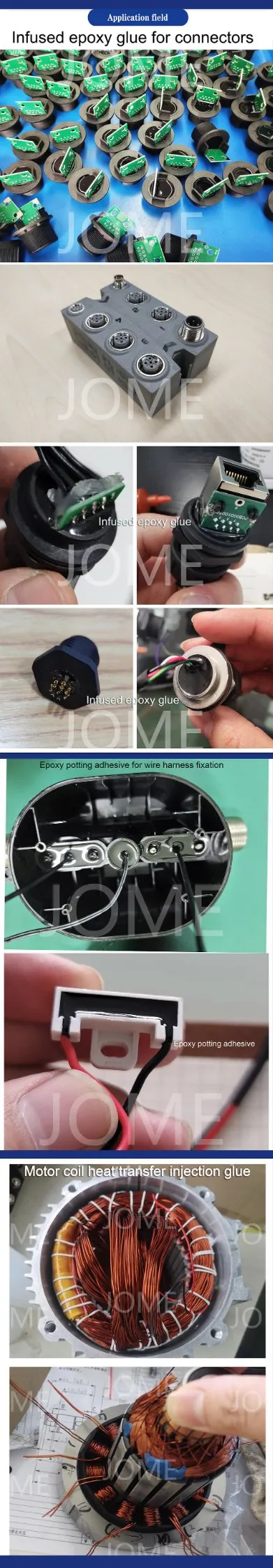

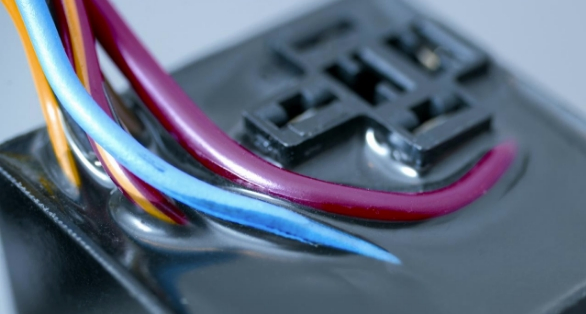

Widely used in electronic and electrical equipment, it has strong structural support and mechanical protection capabilities after curing. Due to its relatively low price, it is widely used in the automotive industry, consumer electronics components, wind power equipment, aerospace and other fields to enhance the mechanical structural stability and performance stability of these components in harsh environments.
| Properties | Test Standard | PART A | PART B |
|---|---|---|---|
| Before Mixing | |||
| Appearance | \ | Black Liquid | Brown liquid |
| Viscosity (cps, 25ºC) | GB/10247-2008 | 95,000±25,000 | 1,500±500 |
| Density (g/cm³, 25ºC) | GB/T 13354-92 | 1.65±0.05 | 1.05±0.05 |
| After Mixing | |||
| Mix Ratio (by weight) | \ | A : B = 5 : 1 | |
| Potting time (100g, 25ºC) | GB/T13477.5-2002 | 35±10 min | |
| Cured condition | GB/T13477.5-2002 | 24h(25ºC) / 30min(80ºC) | |
| After Cured (Tested after 7 days) | |||
| Hardness (Shore D) | GB/T 531.1-2008 | 80 | |
| Thermal Conductivity (W/K.T) | GB/T 10297-1998 | 0.40 | |
| Dielectric strength (kV/mm) | GB/T 1693-2007 | >18 | |
| ITEM NO | APPLICATION | CHARACTERISTICS |
|---|---|---|
| 3102 General Purpose | General electronic components and PCB closure. | Bright surface, no cracking, moisture insulation. |
| 3105 Thermal Type | High-power electronic components requiring heat dissipation. | Excellent heat dissipation after curing. |
| 3108 Transparent Type | Transparent potting requirements for lighting and modules. | High transparency after room temperature curing. |
| 3115 Heat-Resistant | Heat-resistant components, full curing at 80ºC. | Can be used at temperatures up to 180ºC. |
| 3112 Flame Retardant | Capacitor enclosures and solid state relays. | Excellent flame retardant properties. |
