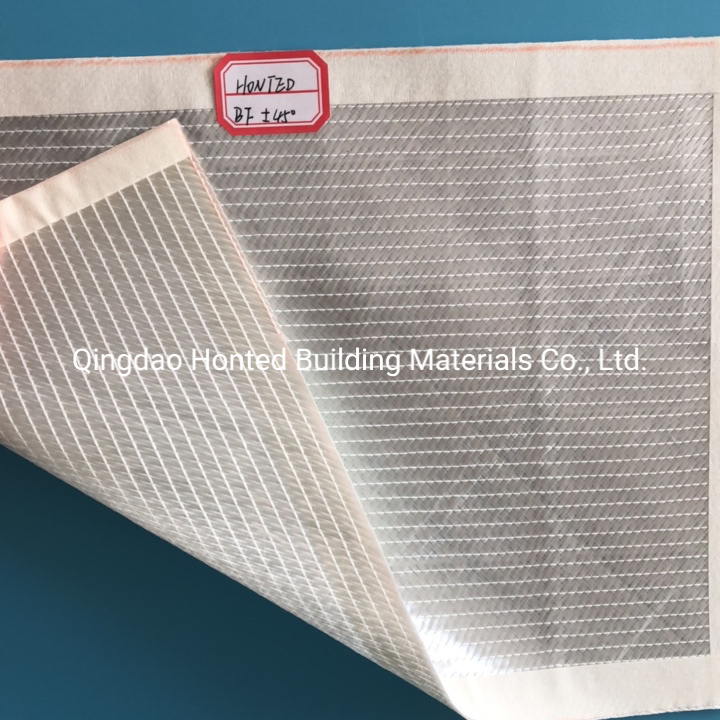

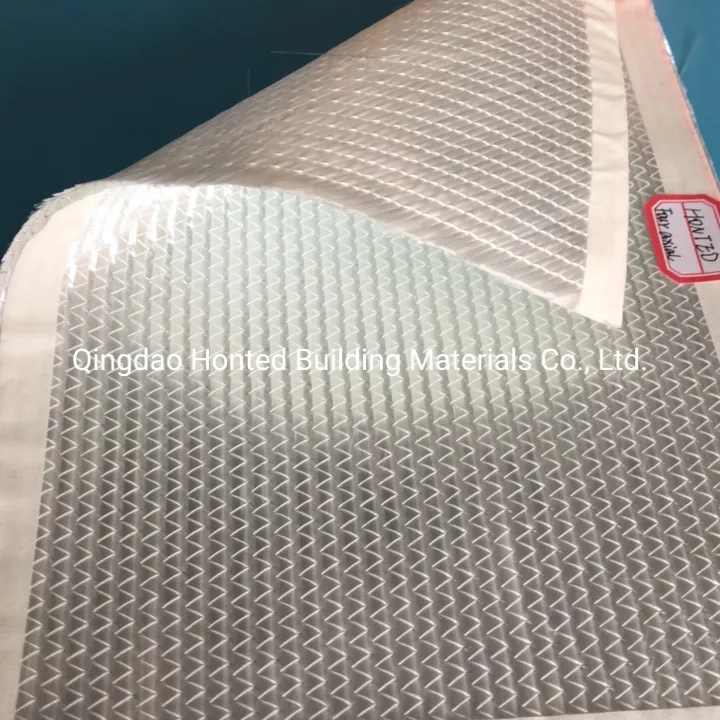

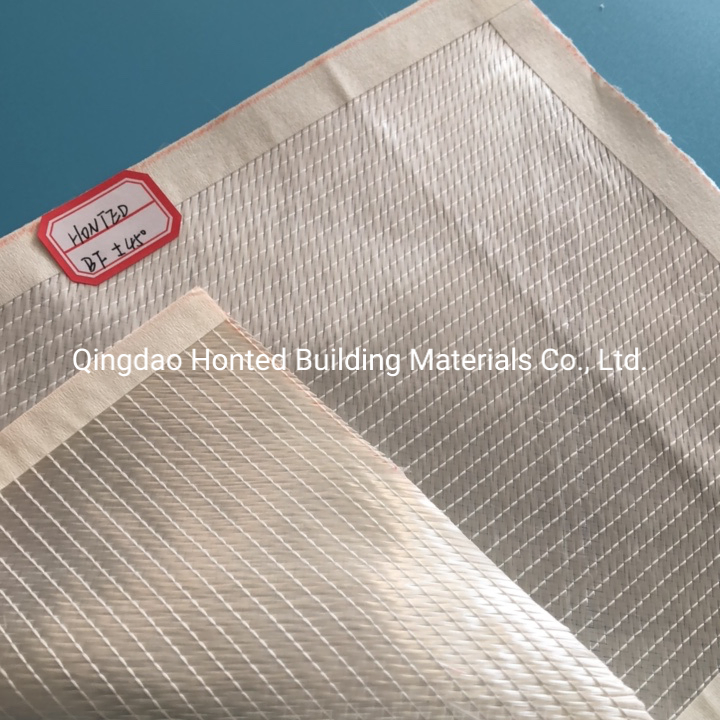

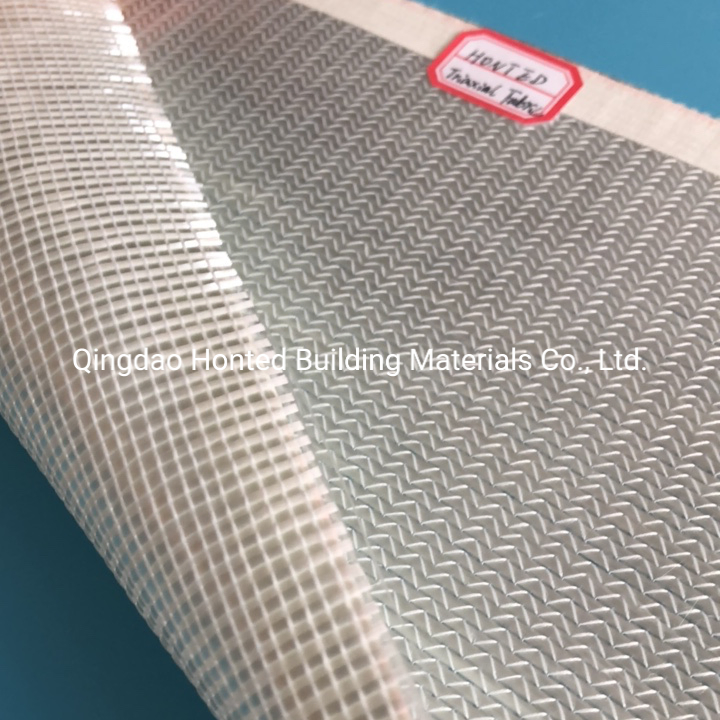

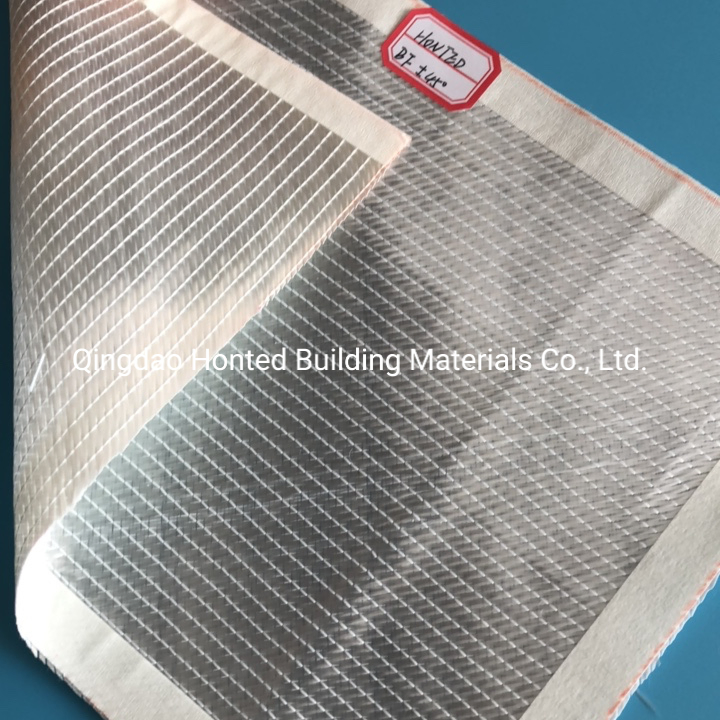

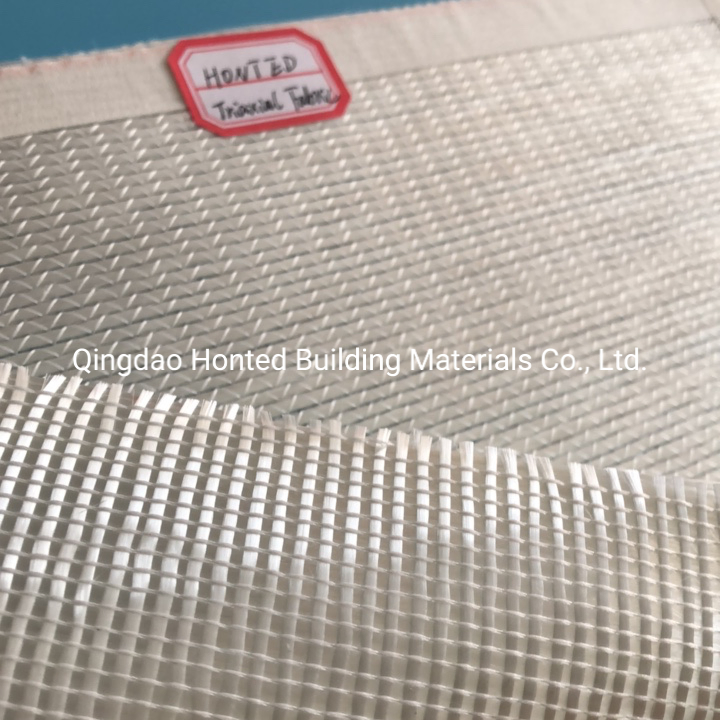

E Glass Fiberglass Quadraxial Fabric: It is a stitch-bonded composite reinforcement combining continuous roving oriented in the 0° +45° 90°, -45° directions into a single fabric. Multi-axial fiberglass fabrics are made from rovings placed parallel in each layer (2-6 layers), stitched by light polyester threads. It is ideal for vacuum infusion or winding processes, mainly used for wind blades and pipes. Compatible with epoxy (EP), polyester (UP), and vinyl resin (VE) systems.

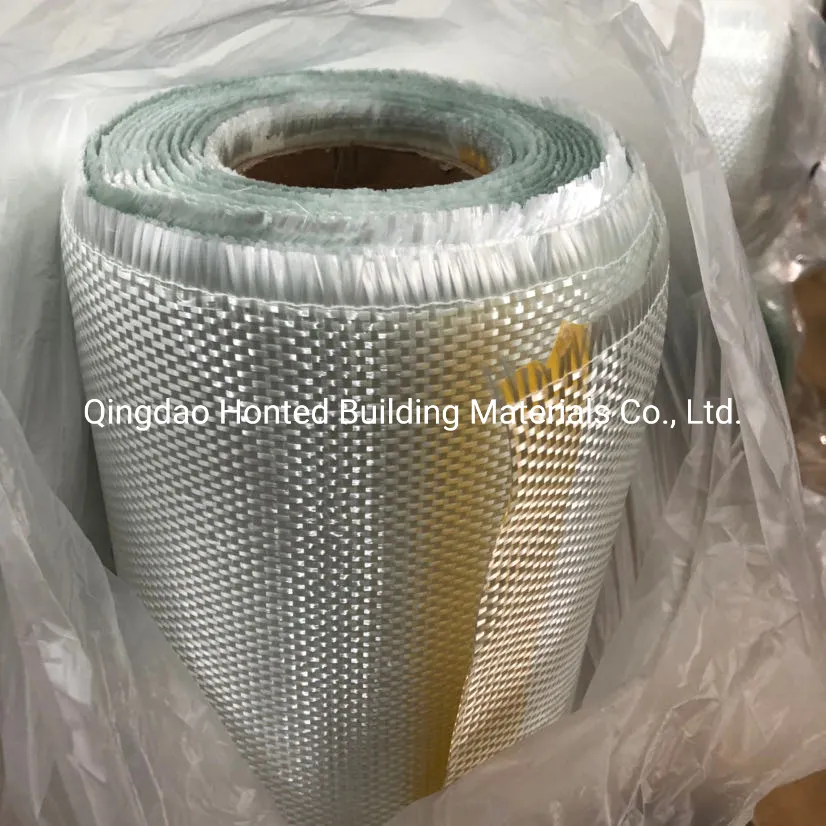

Woven Roving Combo Mat: Consists of woven roving and chopped fiberglass strands stitched with polyester yarn. Widely used in boat building, automotive parts, and structural sections. Suitable for hand lay-up, RTM, pultrusion, and vacuum processes.
Main advantages include fiber structures designed for high strength in specific directions, ease of operation without displacement, and binder-free construction for easy resin soaking.
| Product No. | Overall Density(g/m2) | 0° Roving | +45° Roving | 90° Roving | -45° Roving | Polyester Yarn |
|---|---|---|---|---|---|---|
| HTQX600 | 601.4 | 144.7 | 150.4 | 150 | 150.4 | 6 |
| HTQX800 | 823.8 | 216 | 200.5 | 200.8 | 200.5 | 6 |
| HTQX1000 | 954 | 216 | 248 | 236 | 248 | 6 |
| HTQX1200 | 1201.2 | 294 | 300.6 | 300 | 300.6 | 6 |
| HTQX1600 | 1620 | 434 | 308 | 564 | 308 | 6 |
Storage Conditions: Products should be kept in a dry, cool, and moisture-proof area. Recommended temperature: 15ºC - 35ºC; Humidity: 35% - 65%. For best results, use within 12 months of production.
